HIROYASU CB-1011 CB Walkie Talkie 27MHz 40Ch FM/AM 8W Mini 26.565-27.99125MHz Mobile Radio for EU PL DE CE UK IN US IT Countries
Estimate delivery times: 3-5 days International.
Use code "WELCOME15" for discount 15% on your first order.
Free shipping & returns: On all orders over $150.
Hurry up! Only 17 item(s) items left in stock
Couldn't load pickup availability
Description
HIROYASU CB-1011 CB Walkie Talkie 27MHz 40Ch FM/AM 8W Mini 26.565-27.99125MHz Mobile Radio for EU PL DE CE UK IN US IT Countries

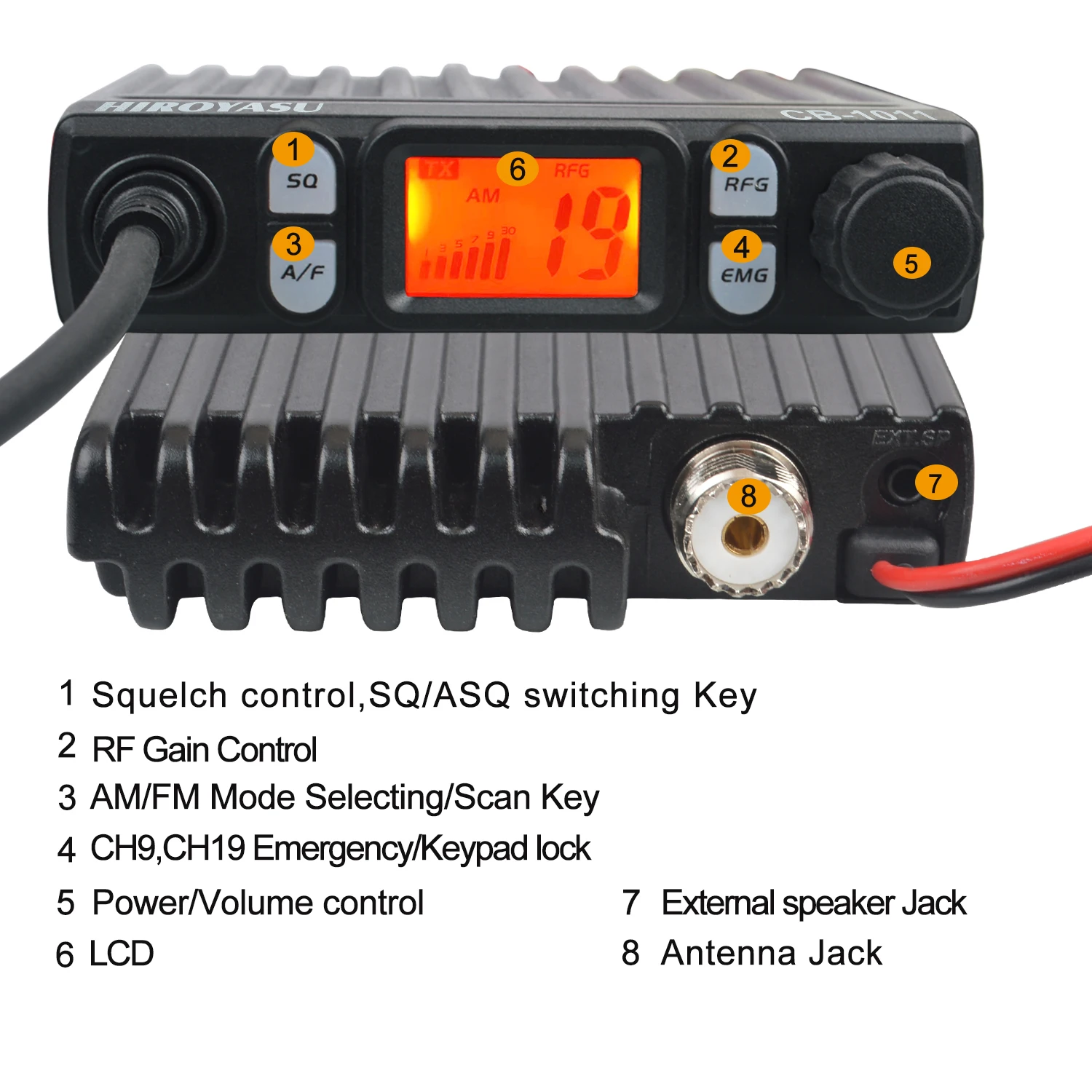

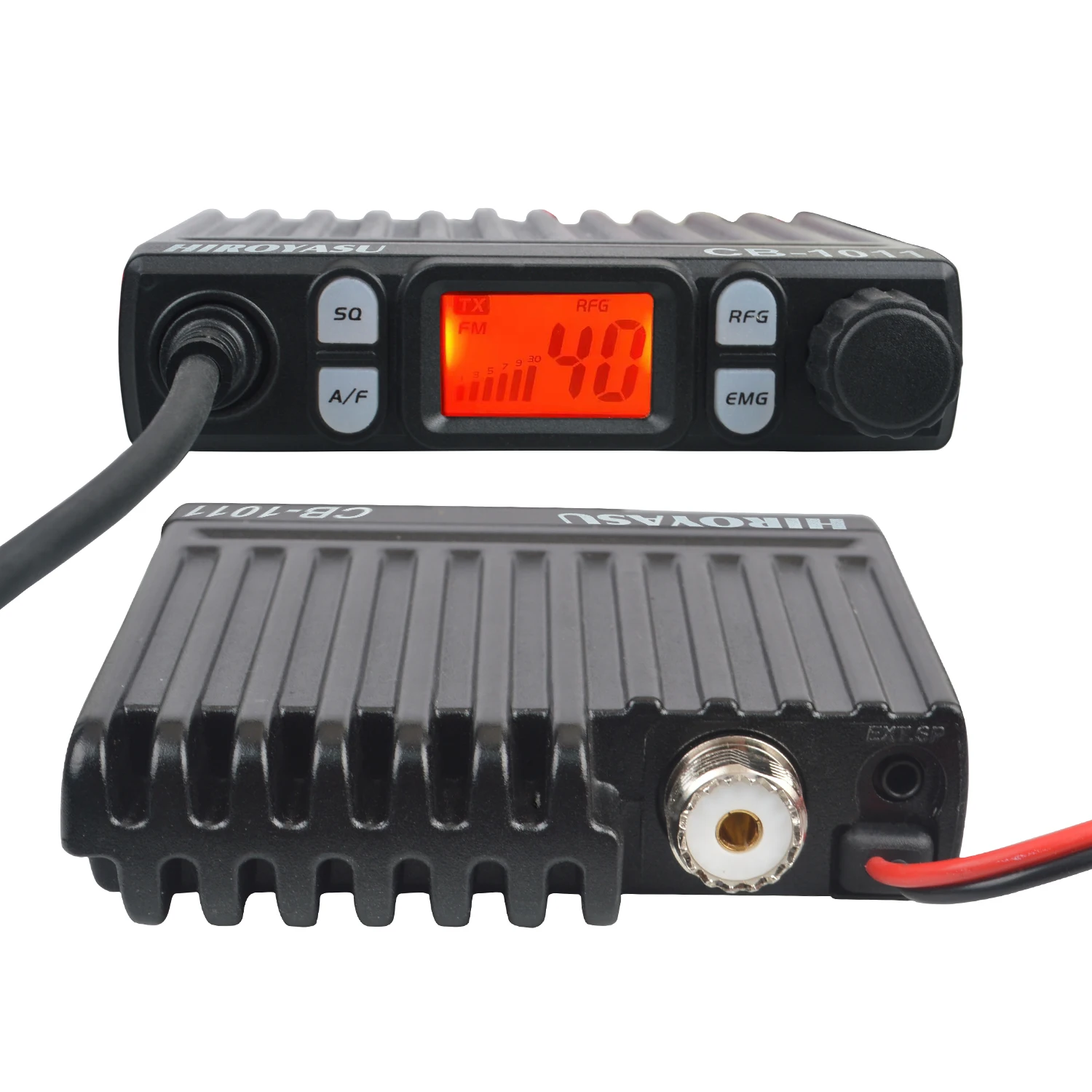

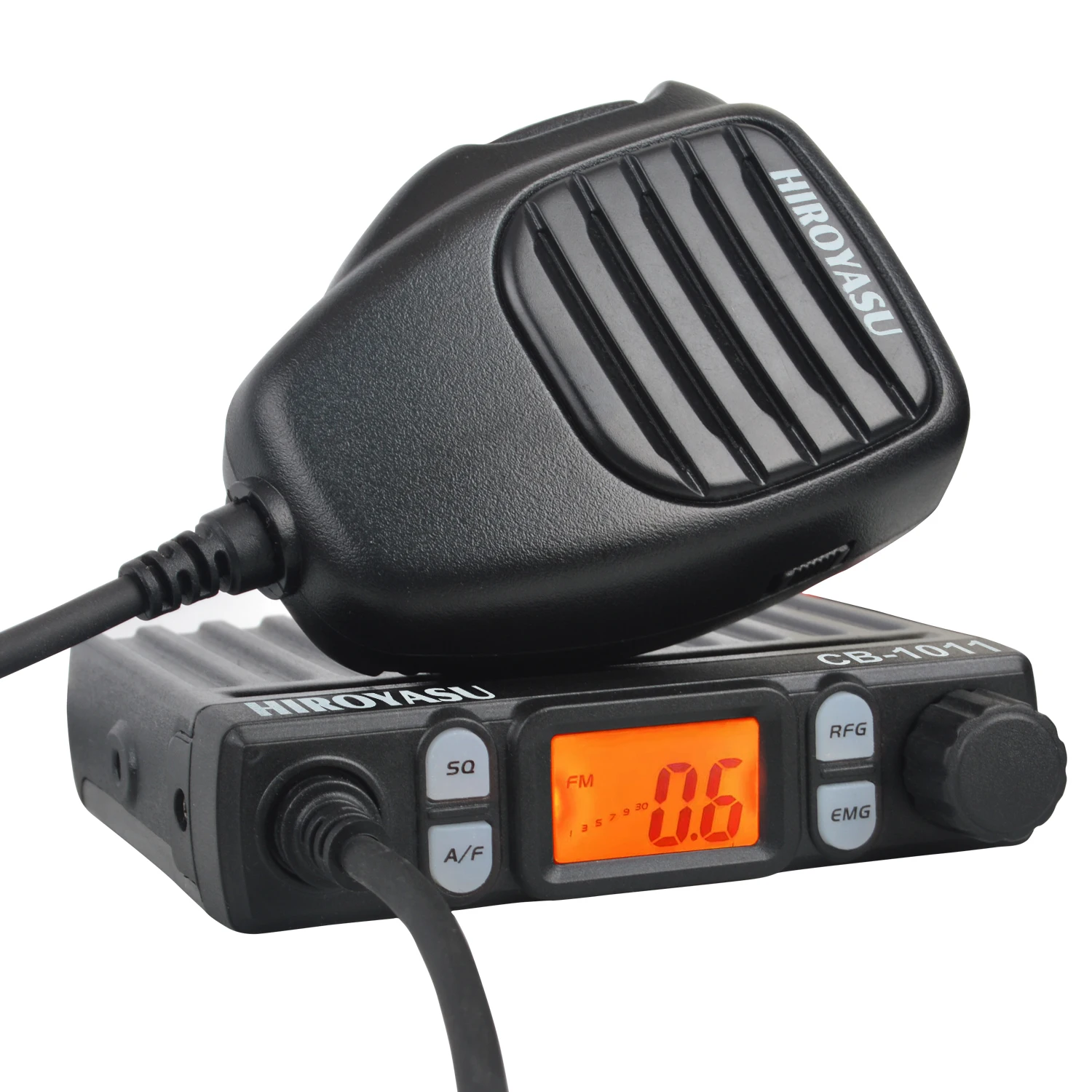

Photos:
Features:

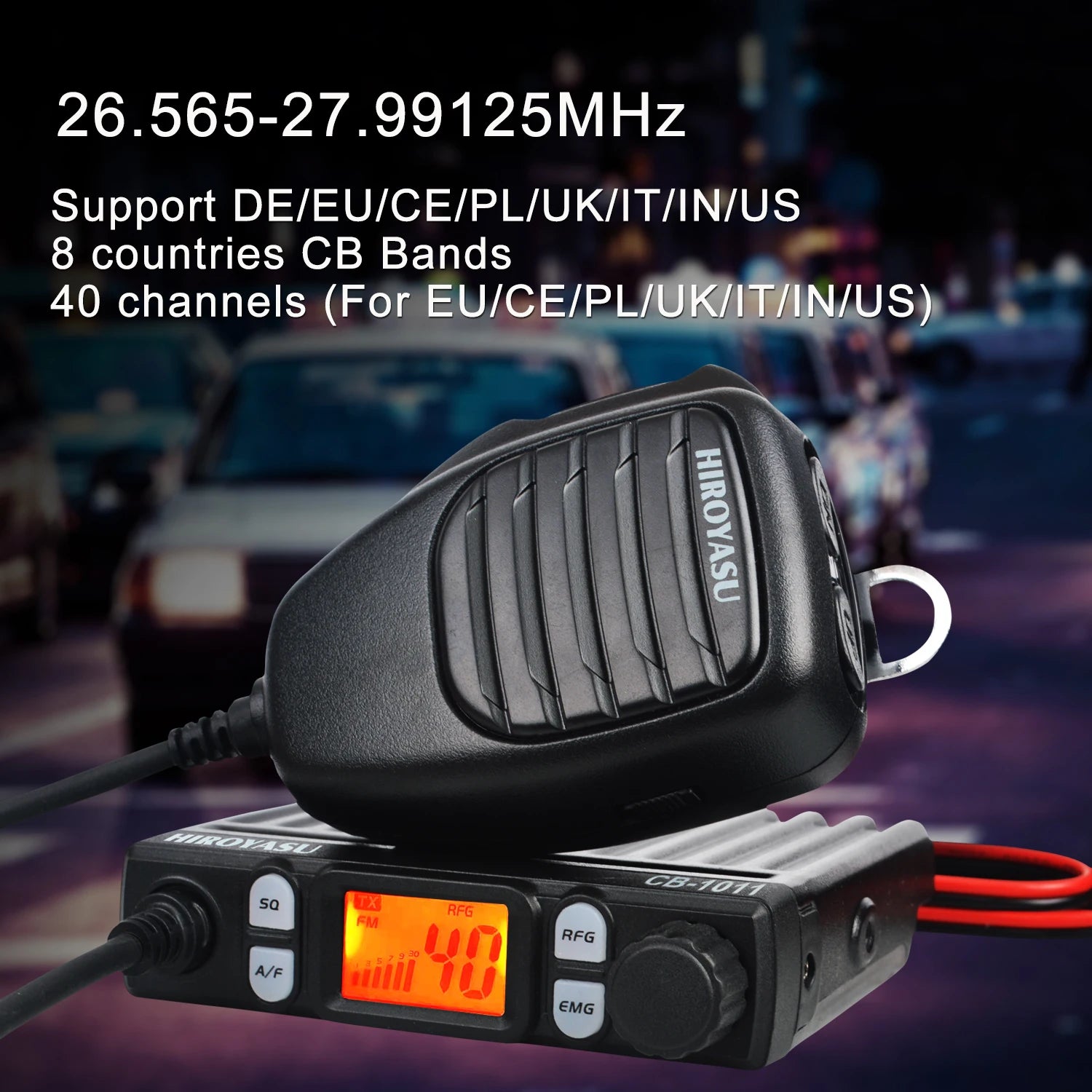

1. Freq Range： 26.565-27.99125MHz

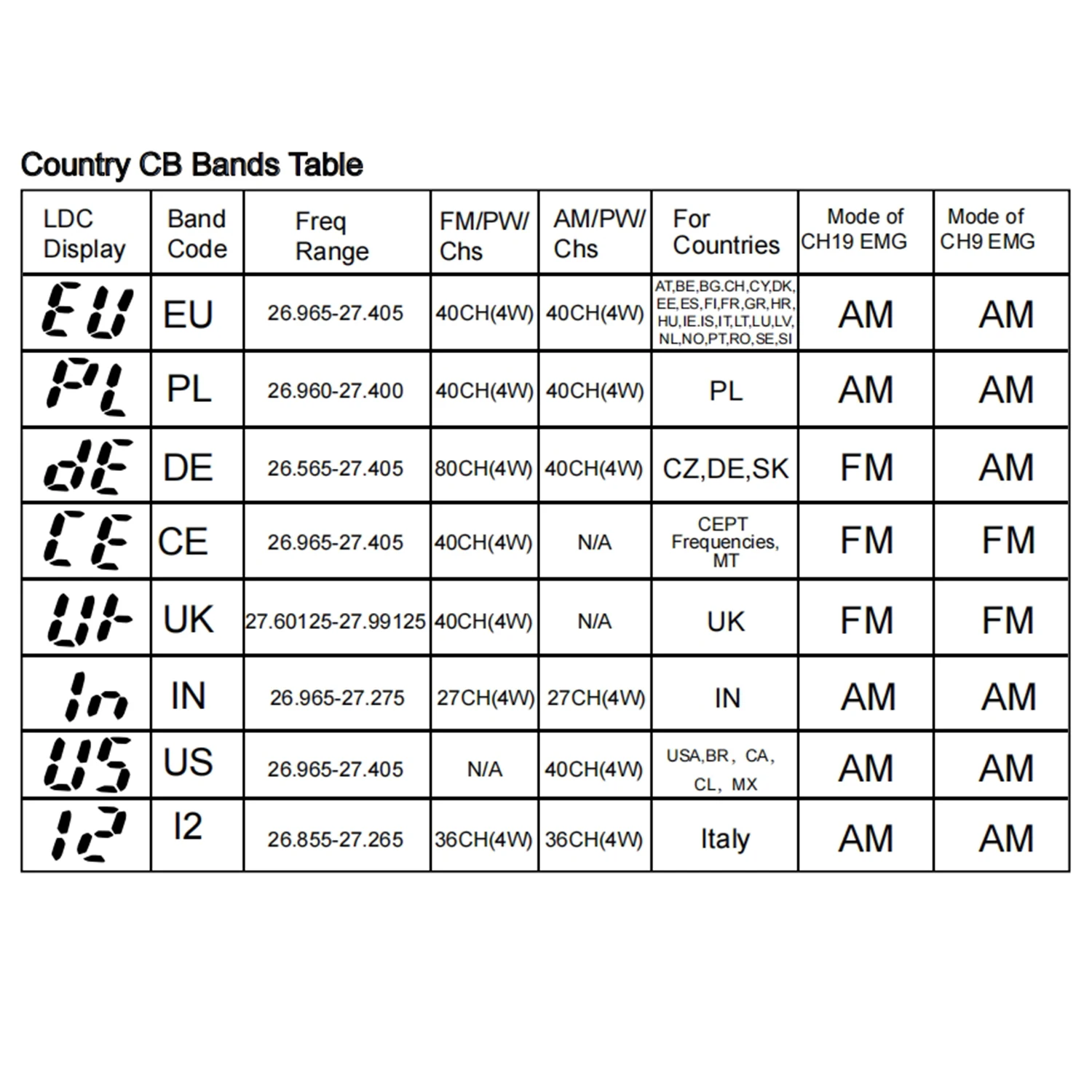

2. Support DE/EU/CE/PL/UK/IT/IN/US 8 countries CB Bands
3. AM/FM Two Modes selection

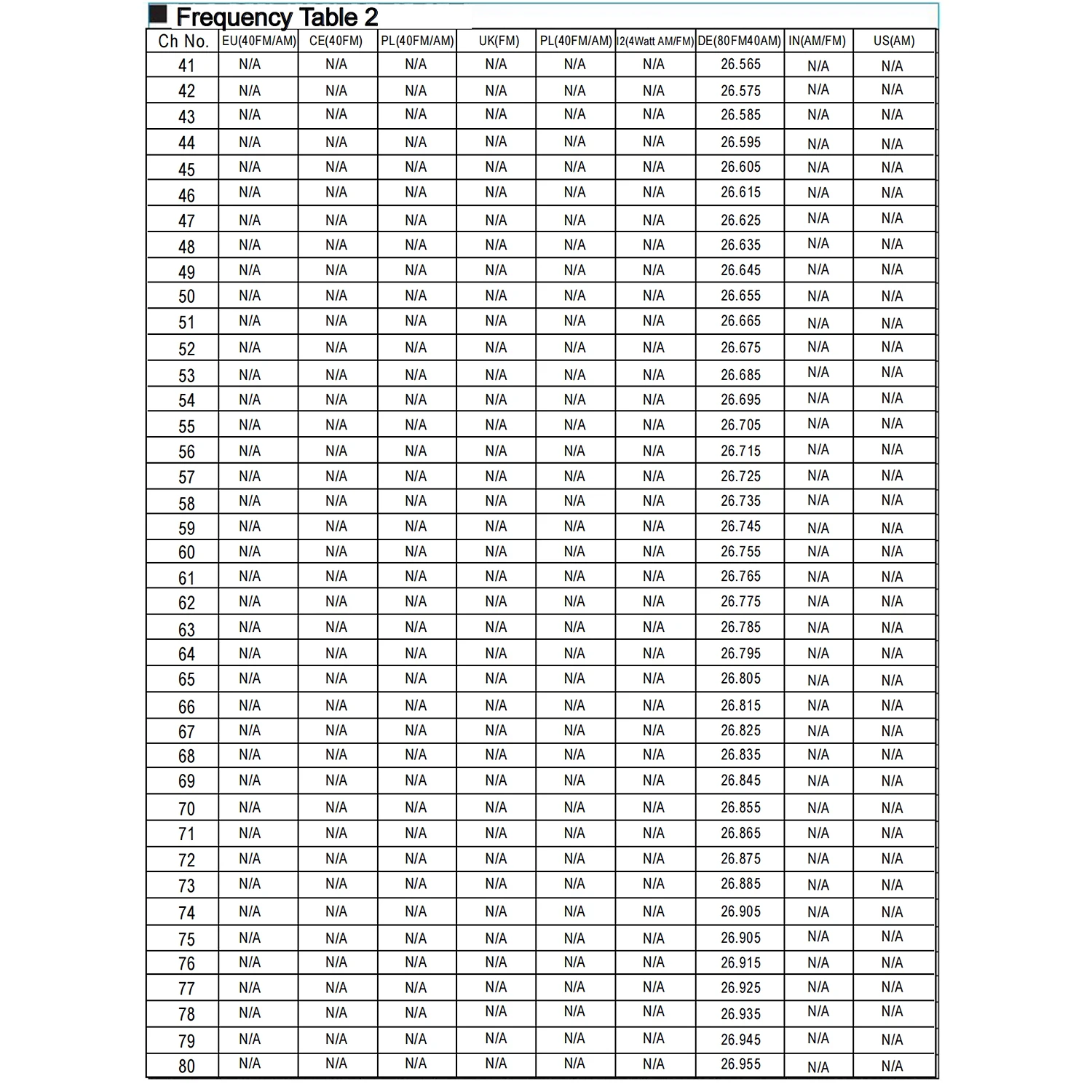

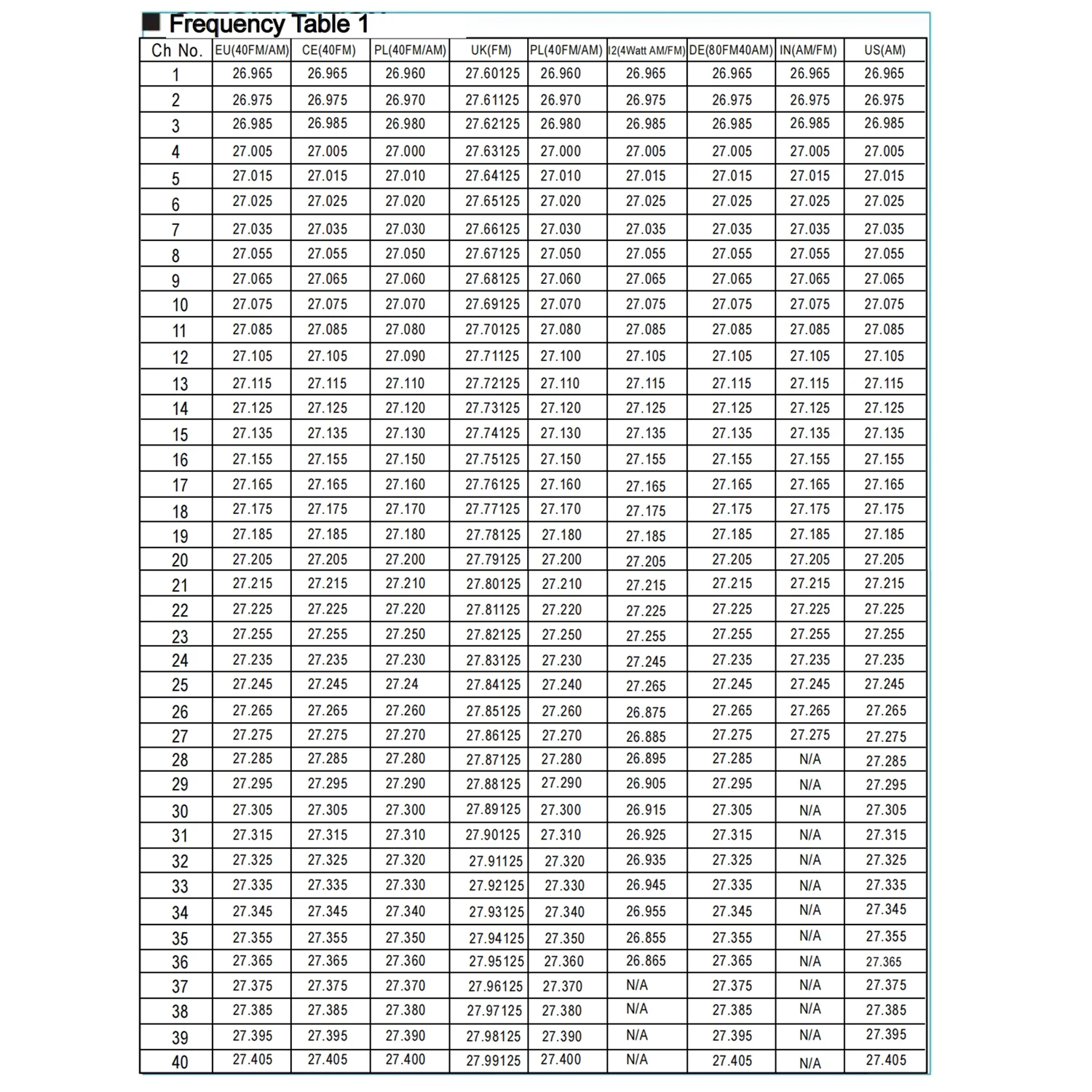

4. 40 channels for EU/CE/PL/UK/IT/IN/US,80 channels for DE
5. PH(8W)/PL(4W) HIGH/LOW power select

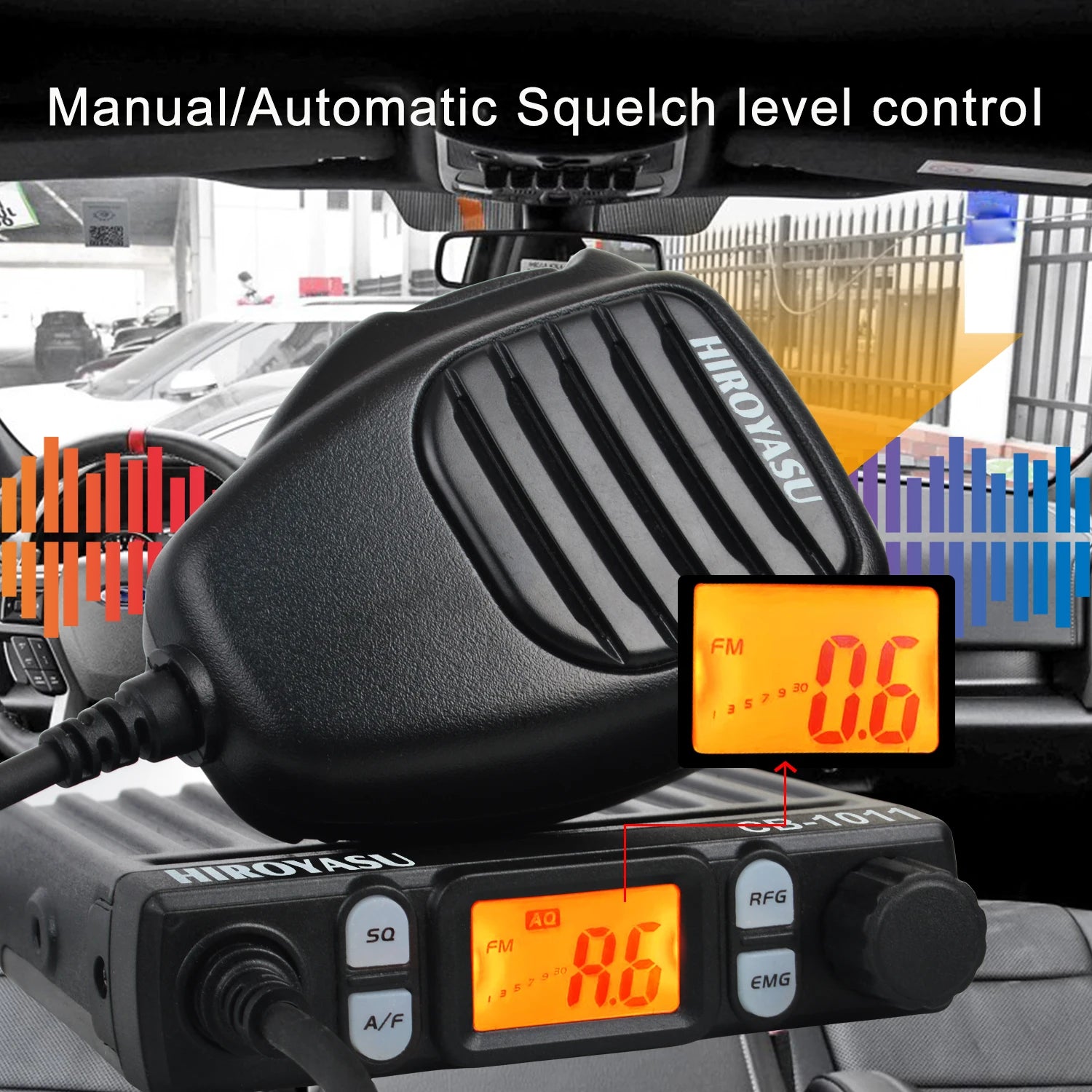

6. Manual /Automatic Squelch level control
7. RF Gain Control(RFG)
8. CH9/CH19 Emergency Channel (EMG)
9. Channel Scan

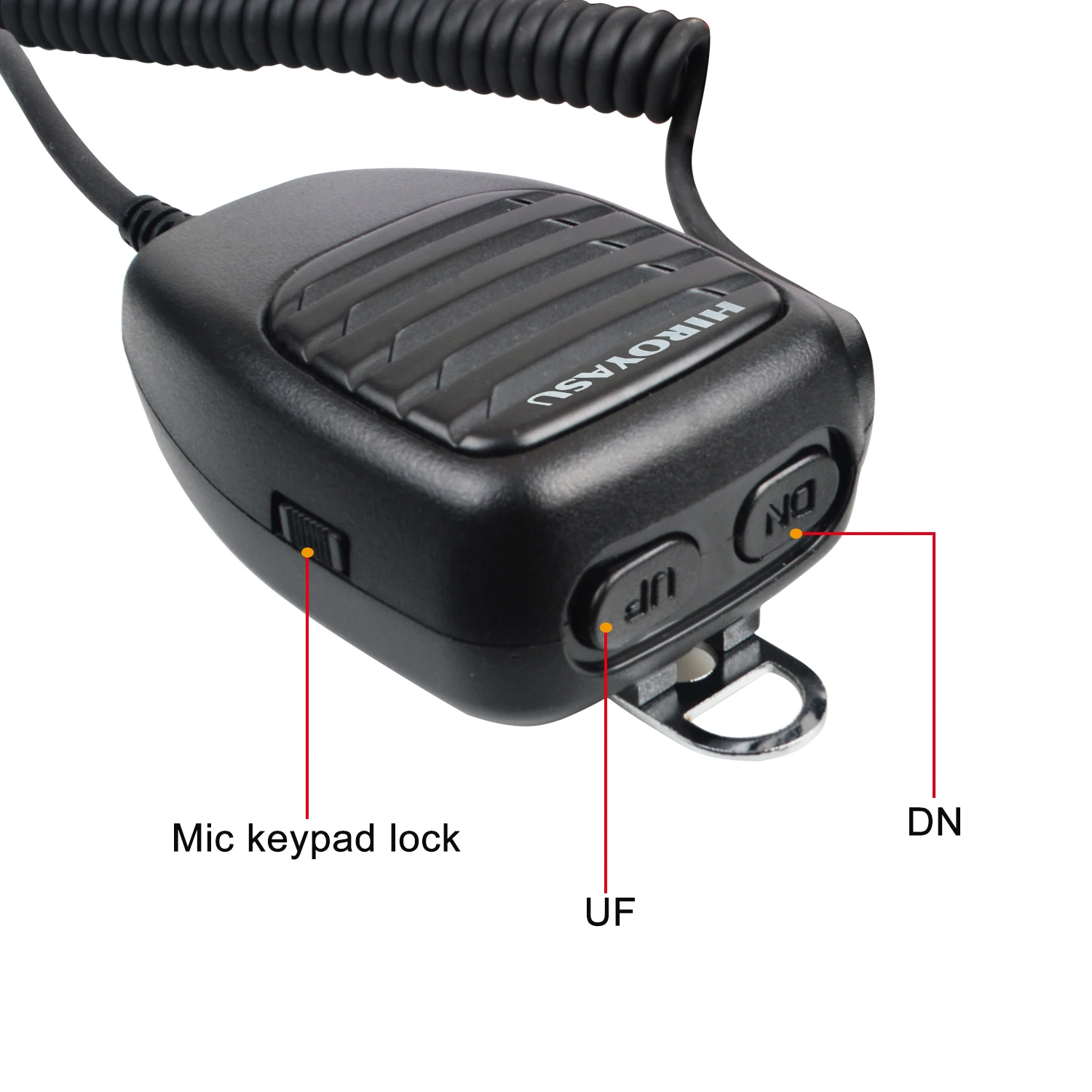

10. Keypad Lock

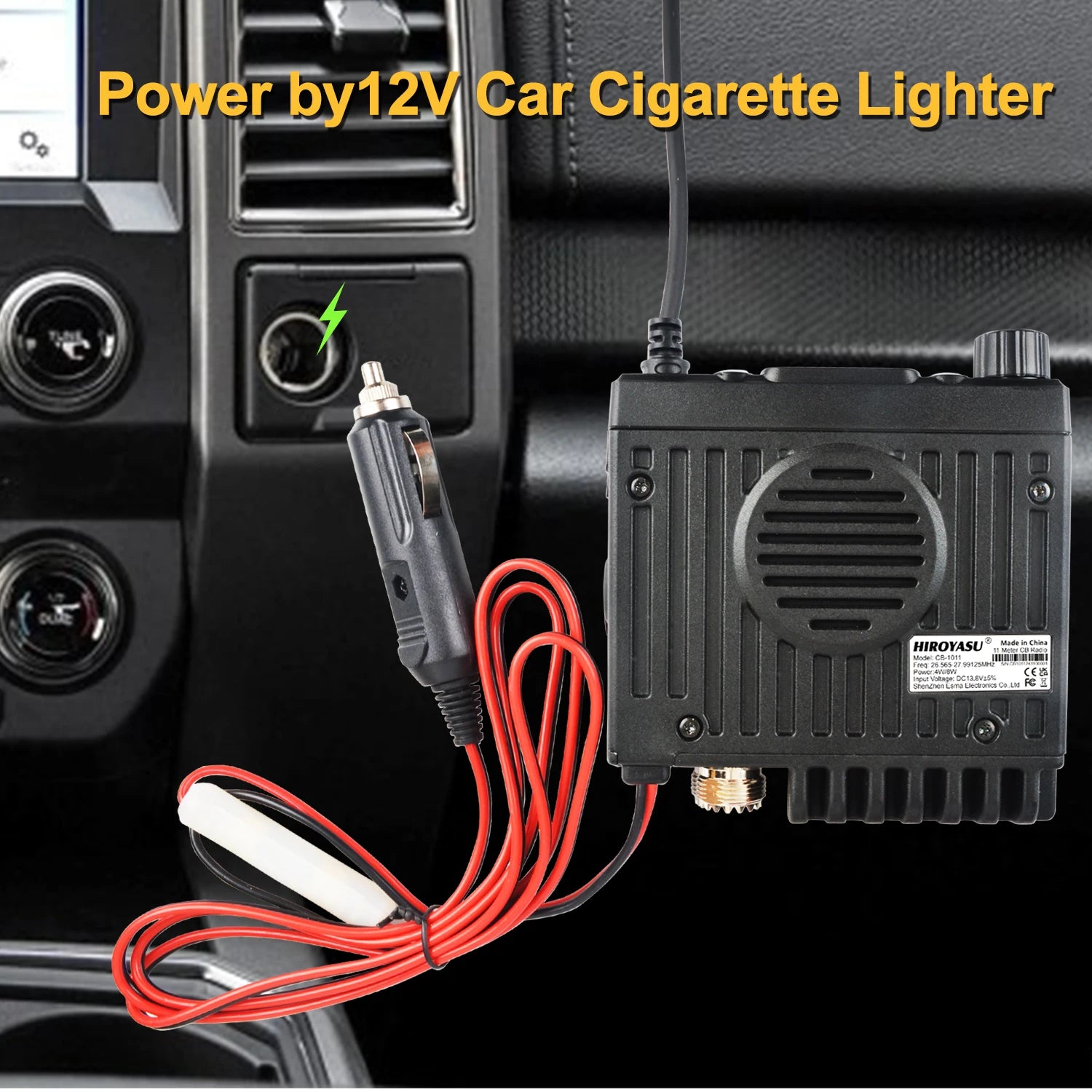

11. Power by 12V Car Cigarette Lighter
12. Factory Default Reset

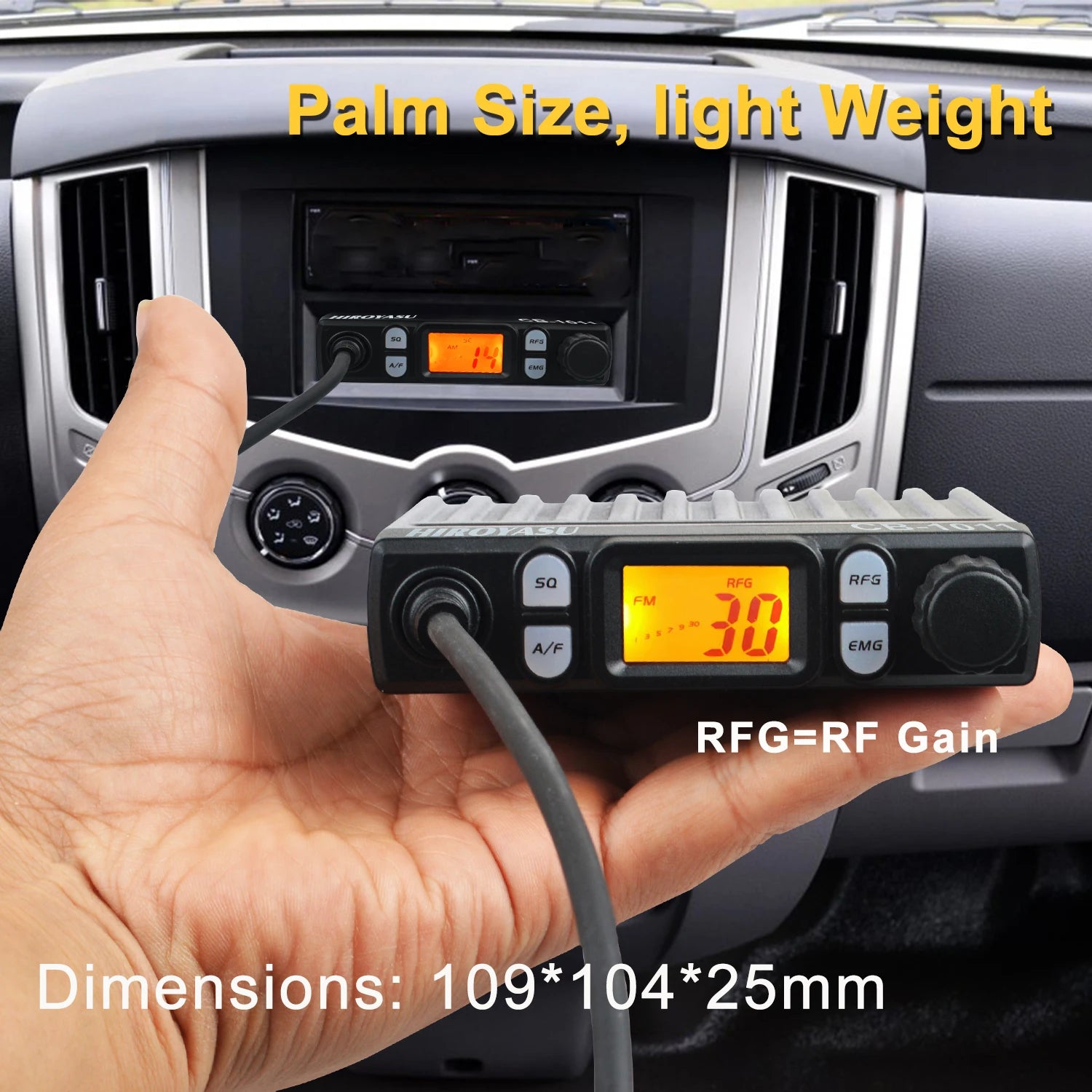

13. Palm Size, light Weight
Specifications:
General | ||
Modulation Mode |
AM/FM |
|
Frequency Range |
26.565-27.99125MHz |
|
Frequency Tolerance |
±5.0ppm |
|
Input Voltage |
13.8V±5% |
|
Dimensions |
109*104*25mm |
|
Weight |
421g |
|
Frequency Control |
PLL Synthesizer |
|
Operating Temperature Range |
-20°c~+50°c |
|
Current Drain |
Transmit |
2A Max. |
Receiver |
Squelched 0.3A |
|
Vol Max. |
0.8A |
|
Antenna Connector |
UHF,SO239 |
|
Transmitter | ||
Power Output |
8 Watts FM/AM |
|
Transmission interference |
Inferior to 4nW(-54dBm) |
|
Frequency Response |
300-3000Hz |
|
Modulated Signal Distortion |
Inferior to 5% |
|
Output Impedance |
50 ohms |
|
Receiver | ||
Sensitivity |
Less than 1uV for 10dB (S+N)/N |
|
Image Rejection |
70dB |
|
Adjacent Channel Rejection |
60dB |
|
IF Frequency |
1st10.695MHz |
|
2nd 455KHz | ||
Automatic Gain Control (AGC) |
Less than 10dB change in audio |
|
Output for inputs from 10 to 50000uV | ||
Squelch |
Less than 1uV |
|
Audio Output Power |
1 Watts |
|
Frequency Response |
300-3000Hz |
|

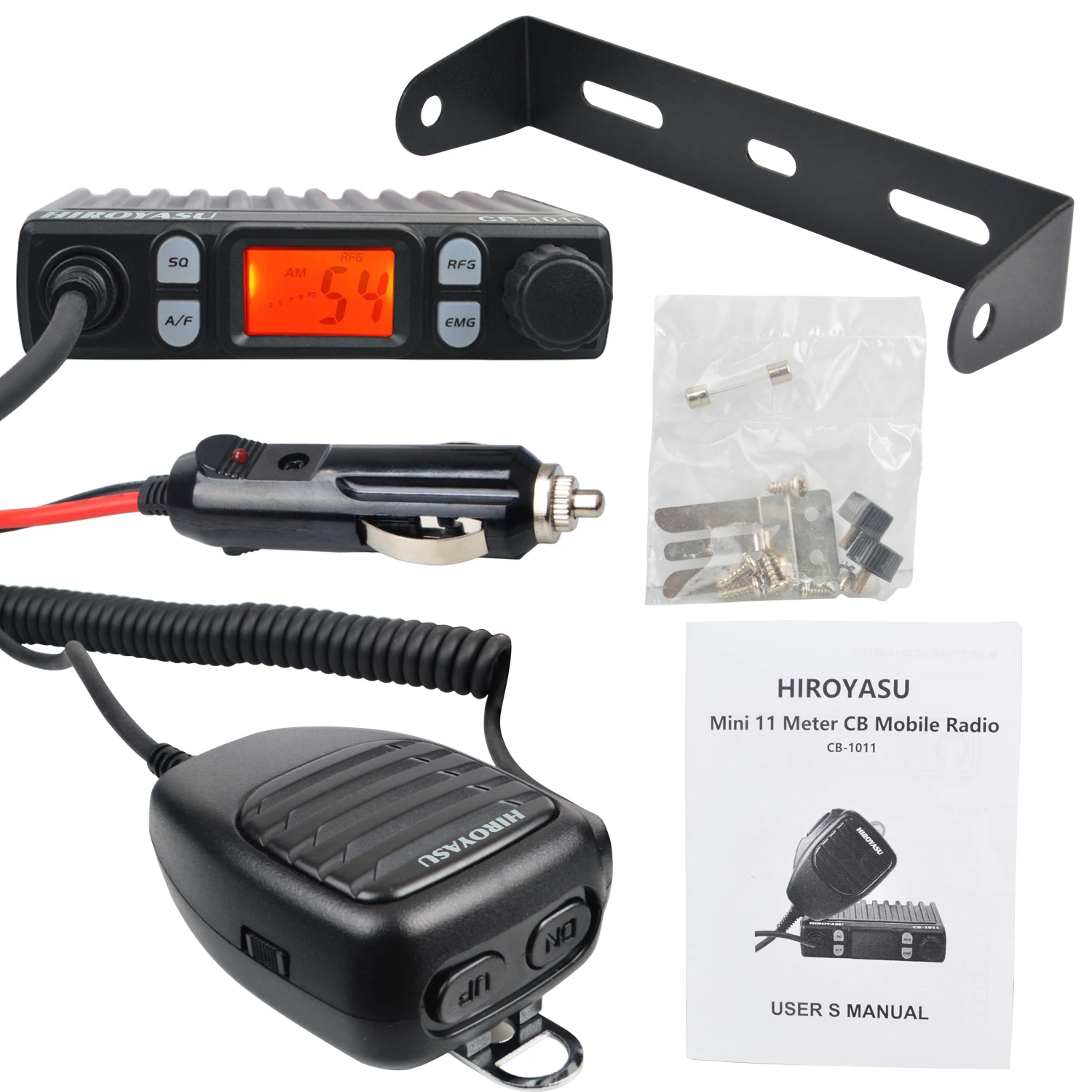

Package Contains:

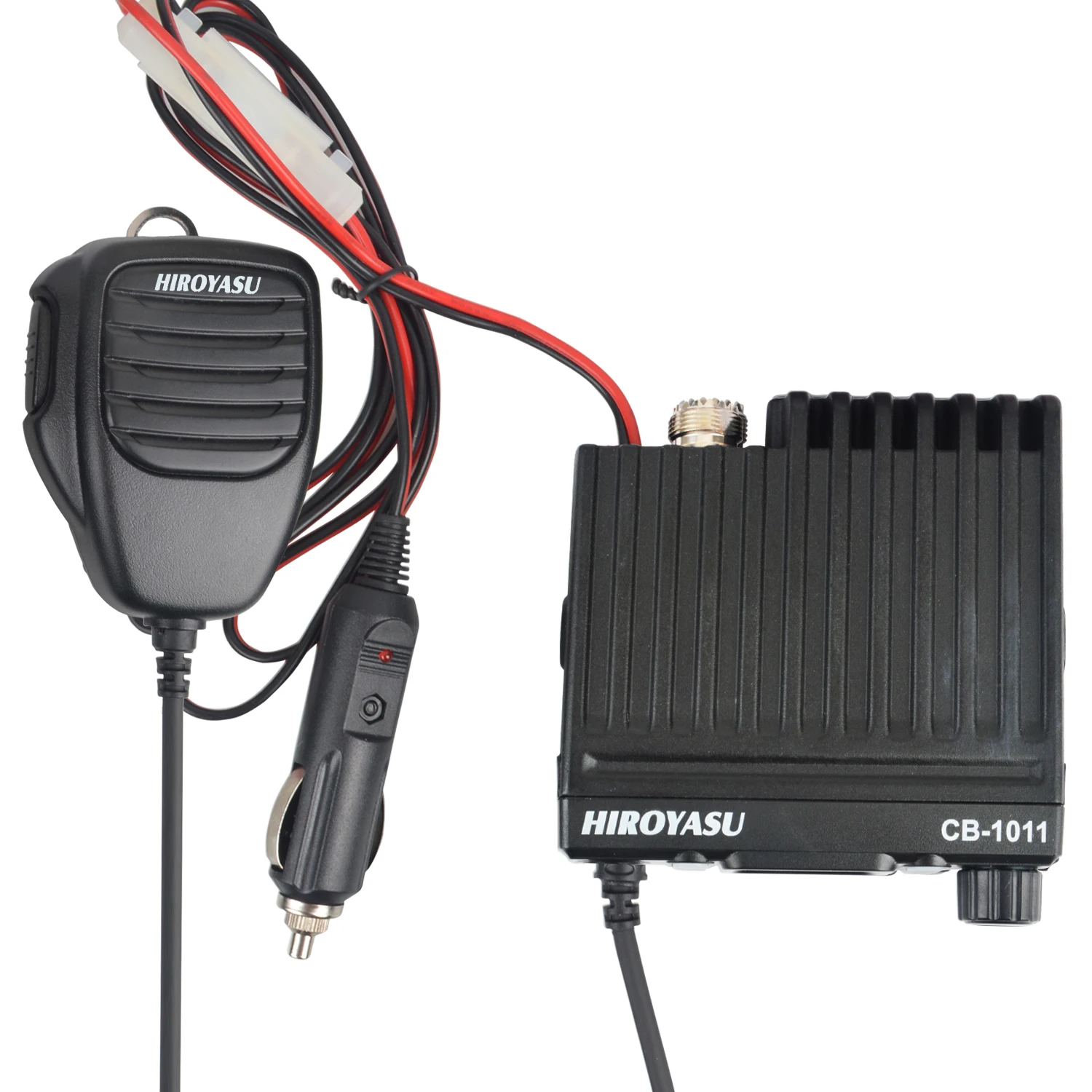

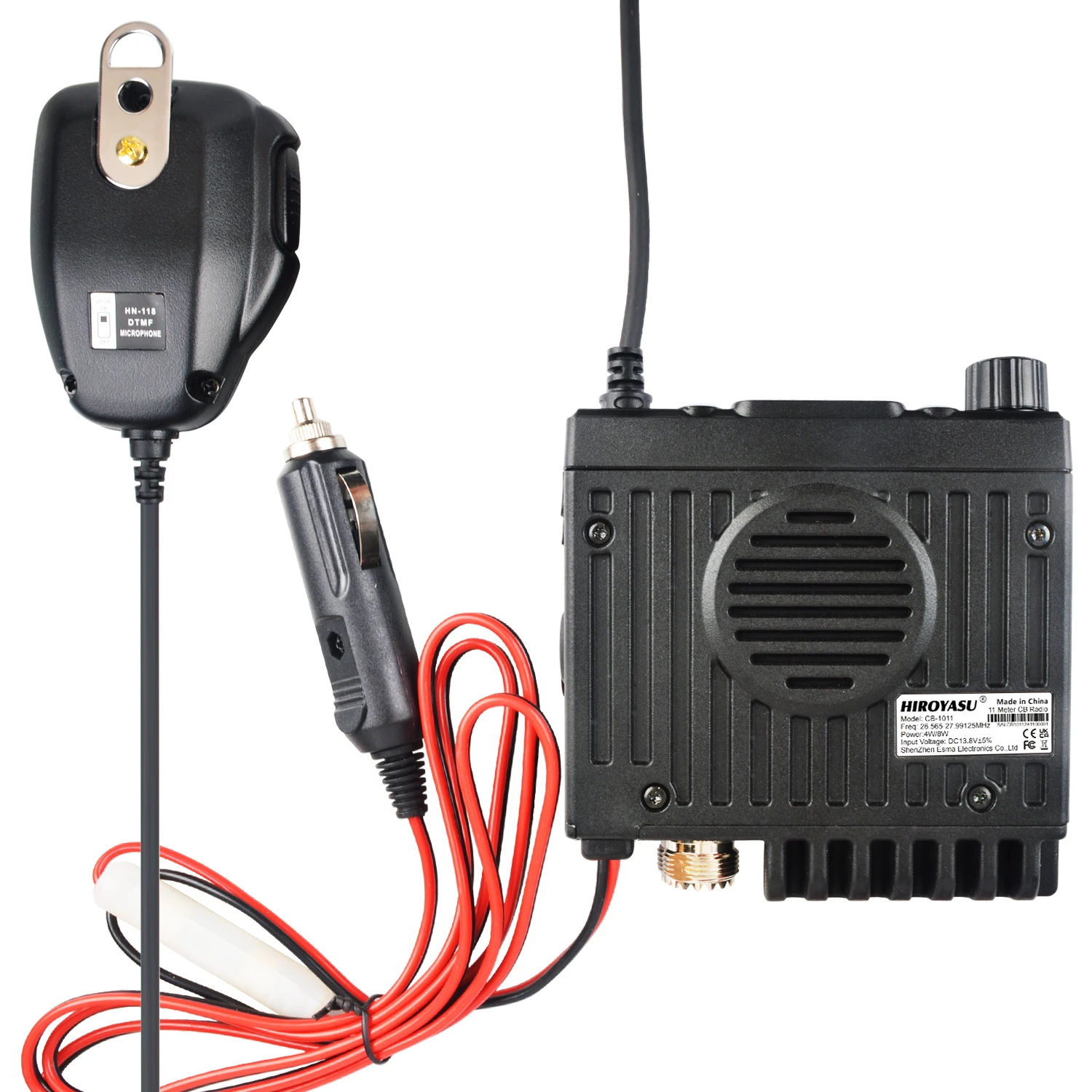

1×Hiroyasu CB-1011 CB Radio bodywith Microphone speaker and DC 12V Input cigarette Power Cable
1× Mounting Bracket
1× Microphone Hanger
2× Adjusting Screws
4× Screws for bracket
2× Pads for bracket
2× Screws
1×Spare Fuse
1× User Manual
