ANCEL V3 Elite OBD2 Scanner Car Diagnostic IMMO Keys for BMW 40+Reset Service Active Test OBD2 BMW Special Inspection Tool 2025

ANCEL V3 Elite OBD2 Scanner Car Diagnostic IMMO Keys for BMW 40+Reset Service Active Test OBD2 BMW Special Inspection Tool 2025

‌ANCEL V3 Elite——“Mobile Expert” for BMW owners and technicians, accurate, efficient and time-saving!

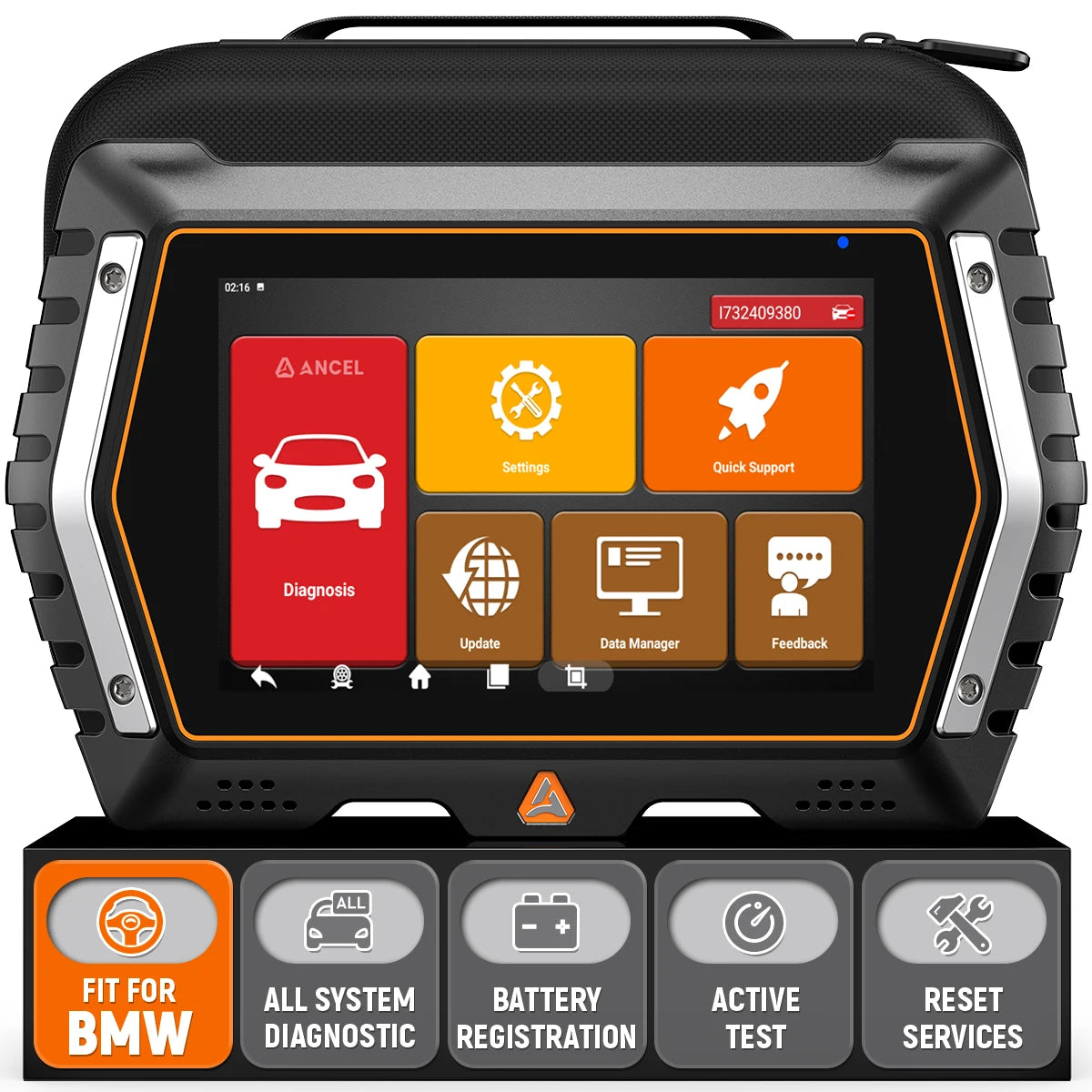

‌5.5-inch high-definition touch screen‌: IPS colorful display, 1280*720 resolution, fingertip sliding response, complex data at a glance!
‌OBDII wired direct connection‌: stable transmission without lag, in-depth reading of BMW's full system fault codes, and no wireless delay troubles.
‌All maintenance Services Reset: ANCEL V3 Elite for BMW service reset tool will do all available special functions intended for BMW vehicles.
‌Auto VIN Reading & Quick Scan All Systems.
‌Turn off the All Warning Light & Dealership-level All Systems Diagnosis.
Bidirectional Control Test
One-click Lifetime Update with Wi-Fi
‌Intelligent diagnosis upgrade‌: real-time data flow analysis, ECU reset, maintenance light reset... no need to ask for help for maintenance!

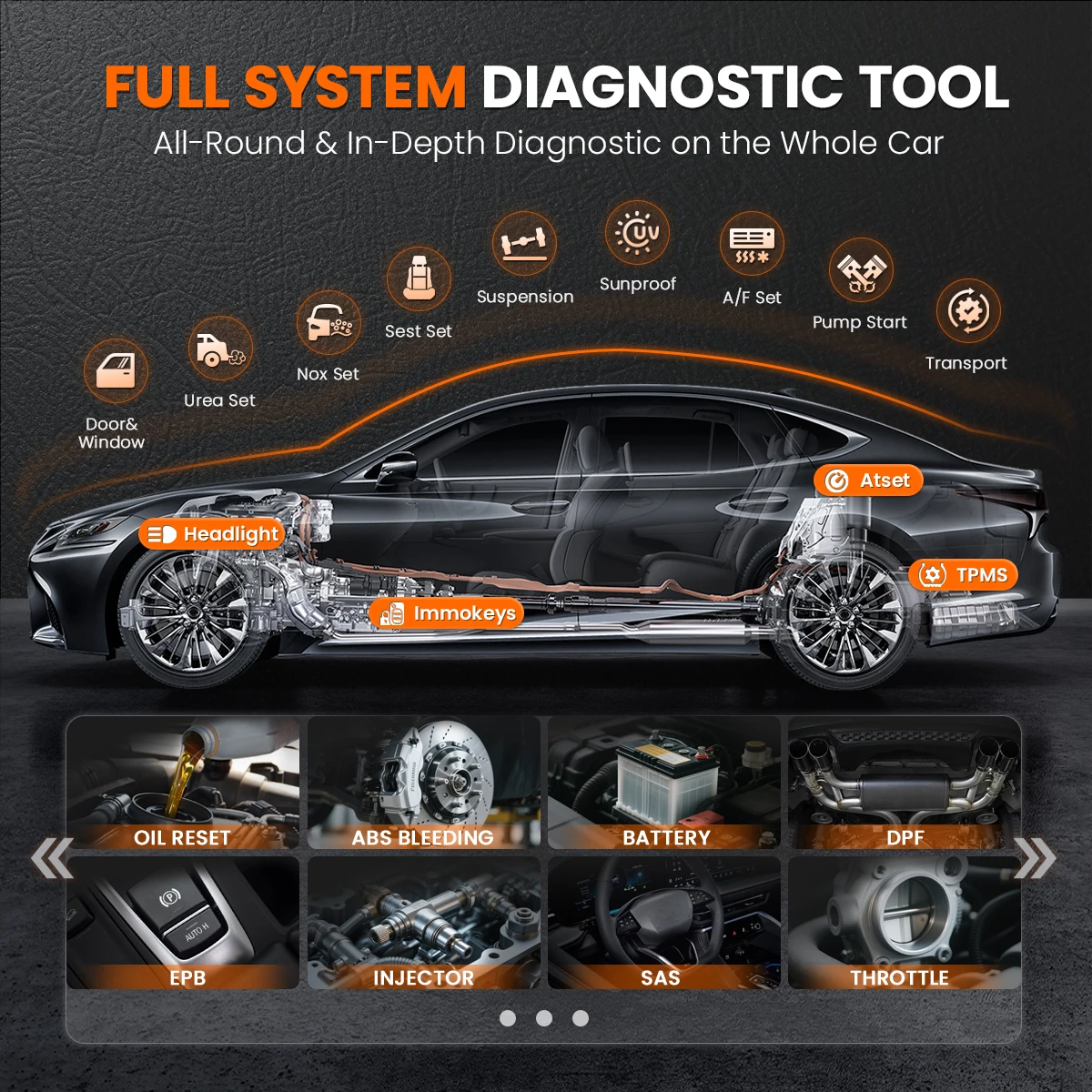

‌ANCEL V3 Elite——40+ professional reset service ‌, one-click control, your car will be as good as new! ‌

‌Powertrain Maintenance‌
‌Oil Reset‌
Reset the vehicle maintenance cycle counter and eliminate the dashboard maintenance reminder light.
‌Injector Coding‌
Write the injector parameters to the ECU to ensure accurate fuel injection matching.
‌A/F Settings‌
Adjust the air-fuel ratio parameters to optimize engine combustion efficiency.
‌Fuel Pump Start‌
Force the activation of the fuel pump for exhaust or system testing.
‌Urea Settings‌
Configure the urea injection amount to meet the exhaust treatment requirements of diesel vehicles (such as SCR system) 5.
‌Nitrogen Oxide Settings‌
Adjust the NOx sensor threshold to ensure emission compliance 5.
‌Chassis and Braking‌
‌ABS Exhaust‌
Clear the air in the brake hydraulic line and restore the anti-lock braking system function 1112.
‌EPB Reset‌
Initialize the electronic handbrake system to solve the brake jam or fault code 6.
‌TPMS Reset‌
Relearn the tire pressure sensor ID and calibrate the tire pressure warning system 4.
‌SAS reset‌
Steering angle sensor zero calibration, eliminate steering wheel offset alarm.
‌Brake fluid exhaust‌
Empty the brake fluid pipeline bubbles to ensure brake response sensitivity6.
‌Electronic system reset‌
‌Battery reset‌
Clear the voltage fault code cached by the ECU and restore the battery management data14.
‌Anti-theft key‌
Match the key with the engine anti-theft locking system (IMMO)6.
‌AT settings‌
Transmission adaptive learning, optimize the smoothness of shifting logic.
‌Transportation mode release‌
Release the low power consumption state during the transportation of new cars and activate the full vehicle function13.
‌Body control‌
‌Headlight reset‌
Initialize the headlight horizontal position sensor to avoid lighting angle errors.
‌Suspension reset‌
Air/electromagnetic suspension height calibration, restore comfort settings.
‌Door window initialization‌
Reset the anti-pinch function and lifting travel to solve the problem of false triggering7.
‌Sun visor reset‌
Panorama sunroof sunshade travel calibration.
‌Seat settings‌
Memory position and massage function parameters reset.
️ ‌Emission control‌
‌DPF regeneration‌
Burns carbon deposits in the diesel particulate filter and restores exhaust flow (in driving/parking mode)

ANCEL V3 Elite——BMW's full system in-depth diagnostic expert, one machine to control, accurate and worry-free!"

ANCEL V3 Elite fit for BMW code reader diagnostic scan tool can perform delership-level diagnosis on all available electronic systems, including engine, transmission, anti-lock brake system (ABS), suspension,cruise control system, steering angle system, air conditioning system(A/C), audio system, body system, gateway, HVAC, PCM, ECM, TCM, CTM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc. Providing you with a Dealership- Level only diagnosis, getting the accurate and in-depth results across all automotive systems, saving you a trip to the dealership to do a more in depth diagnosis on the car and unnecessary maintenance costs. Except for the basic functions, the FOXWELL NT710 fit for bmw all systems scanner provides several valuable auxiliary functions for the car diagnosis yet

Oe-level Full Available System Diagnosis——Original factory-level full system diagnosis, accurate decoding, control every detail!"

Read Vehicle Identification: With the autovin function, this ANCEL V3 Elite fit for BMW code reader will be able to identify your vin automatically and show ECU information.

Quick Scan All Available Modules: Performs an automatic system test to determine which control modules are installed on the vehicle and provides diagnostic trouble codes(DTCs) overview. Depending on the number of control modules, it may take a few minutes to complete the test.

Note: Auto VIN/AUTO SCAN function depends on the actual condition of the vehicle, please inform the VIN of your vehicle for further compatibility check.

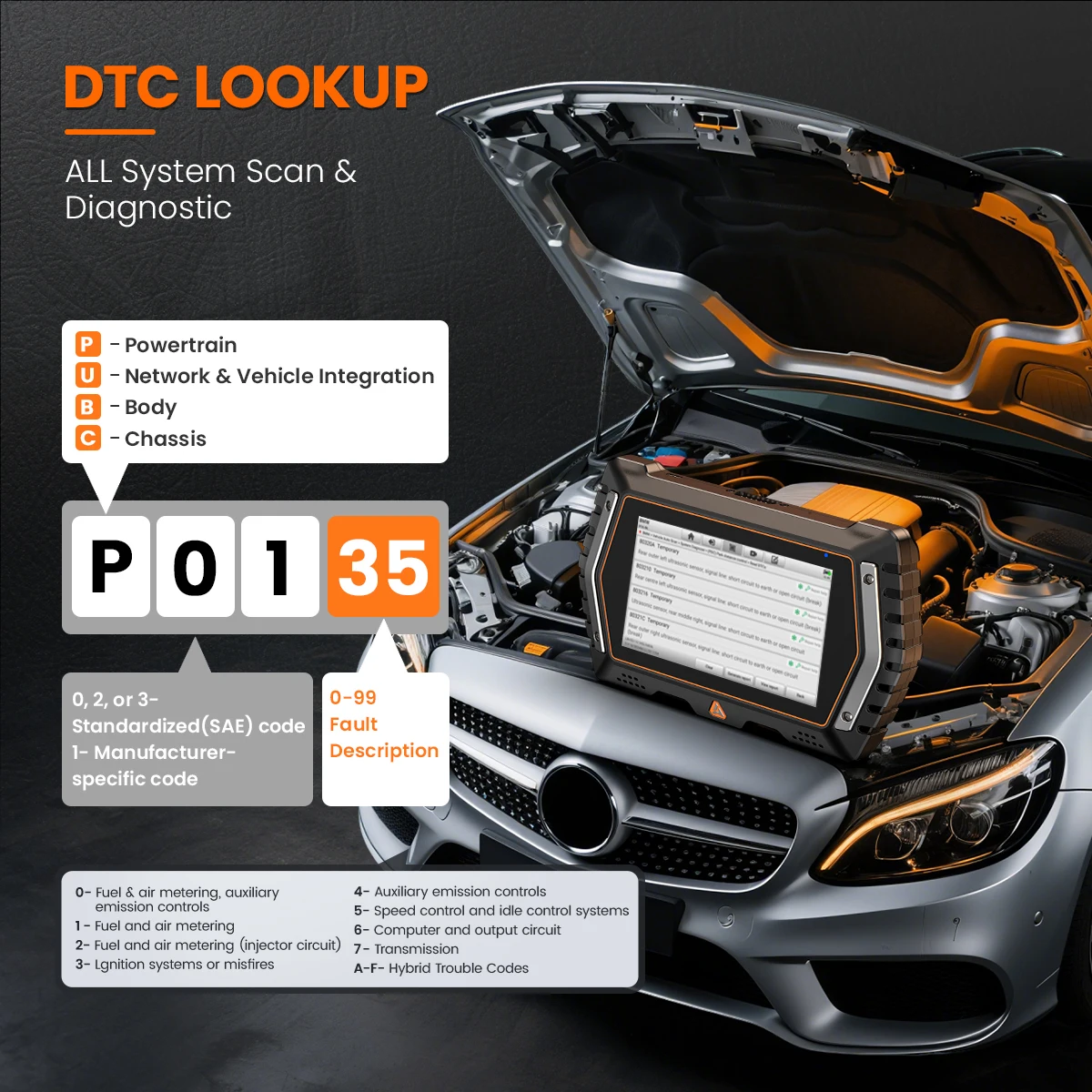

Read Codes: Retrieve detailed information of permanent/ pending/history fault codes to located the problems.

Clear Codes: Erase the permanent/ pending/history error codes after the problem was fixed and turn off the warning light.

Freeze Frame: A snapshot of critical vehicle operating conditions automatically recorded by the on-board computer at the time of the DTC set. For example, when an engine misfire will be detected, a snapshot of the current sensor values will be captured, helping you quickly determine what caused the fault.

4 In 1 Data View: Equipped with a 1080p LCD screen, the ANCEL V3 Elite fit for bmw mini cooper diagnostic scanner can show the live data stream in text and graphs. You can also select different parameters (max 4) to customize the merged graphs to analyze diagnostic data more intuitively and accurately. ANCEL V3 Elite fit for bmw E46 F5 auto scanner will show and record the the live data of all available systems including long term fuel trim, short term fuel trim, engine RPM, engine speed, engine coolant temperature, oil temp, pressure, transmission temp and more. It will allow users easily learn the might cause of a variety of trouble codes for further analysis and ensure the ECU in good status.

Data Record & Playback: Based on the Android 10.0 operating system, It will realize that touch controls the code scanner to store the graphical process of live data. Recording the diagnosis results and playback them to the repair shop worker, you do not need to take your car to the repair shop every time. Easy to use and convenient for further checks.

Read ECU Information & Diagnostic Report: Read ECU information of the control units including unit type, version and etc. Diagnostic Report The detailed report reveals the exact nature of the problem to help greatly plan the budget for repairs.

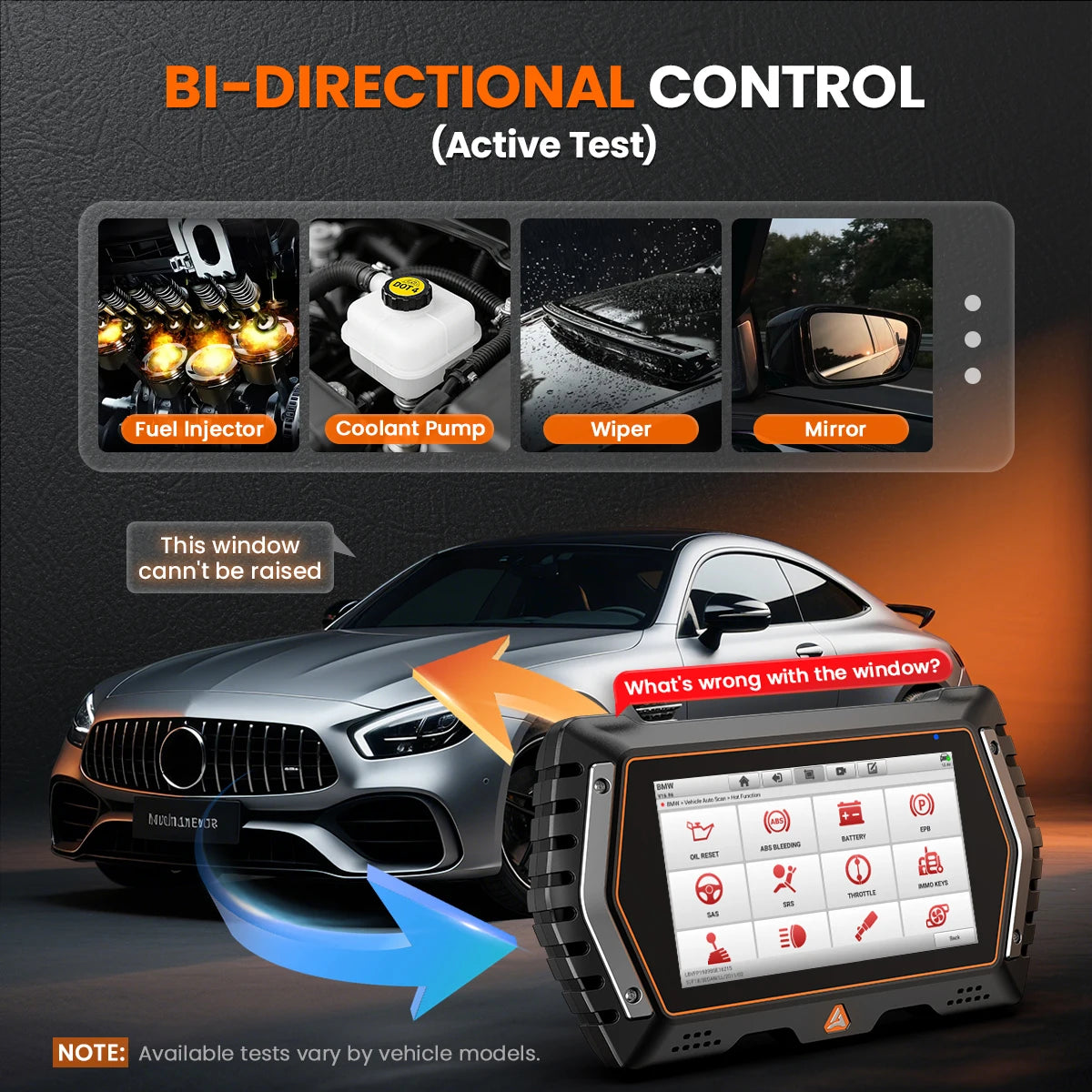

Perform Bi-directional Control/ Active Test

Bi directional Control/ Active Test

ANCEL V3 Elite fit for BMW diagnostic tool is a first bi-directional scan tool which can send command directly from the auto scanner to vehicle's ECU to perform vehicle-specific active tests on car's components and parts, confirm whether this part work normally and find out potential problems. Commonly-used Active Tests including:

Doors/ Windows/ Locks/Mirrors/Wipers/Lights/Headlamps/Sunroof Test
Air Pump Relay Test
EVAP Purge Solenoid Test
Fuel Pump Relay Test (Turn Fuel Pump On/Off)
Cycle A/C Clutch On/Off
Spark Advance Test
Fan Speed Desired Test
Cooling Fan Test
HVAC Actuator Re calibration
More...

All BMW model and 13 Language

BMW:

MINI:

Rolls-Royce:

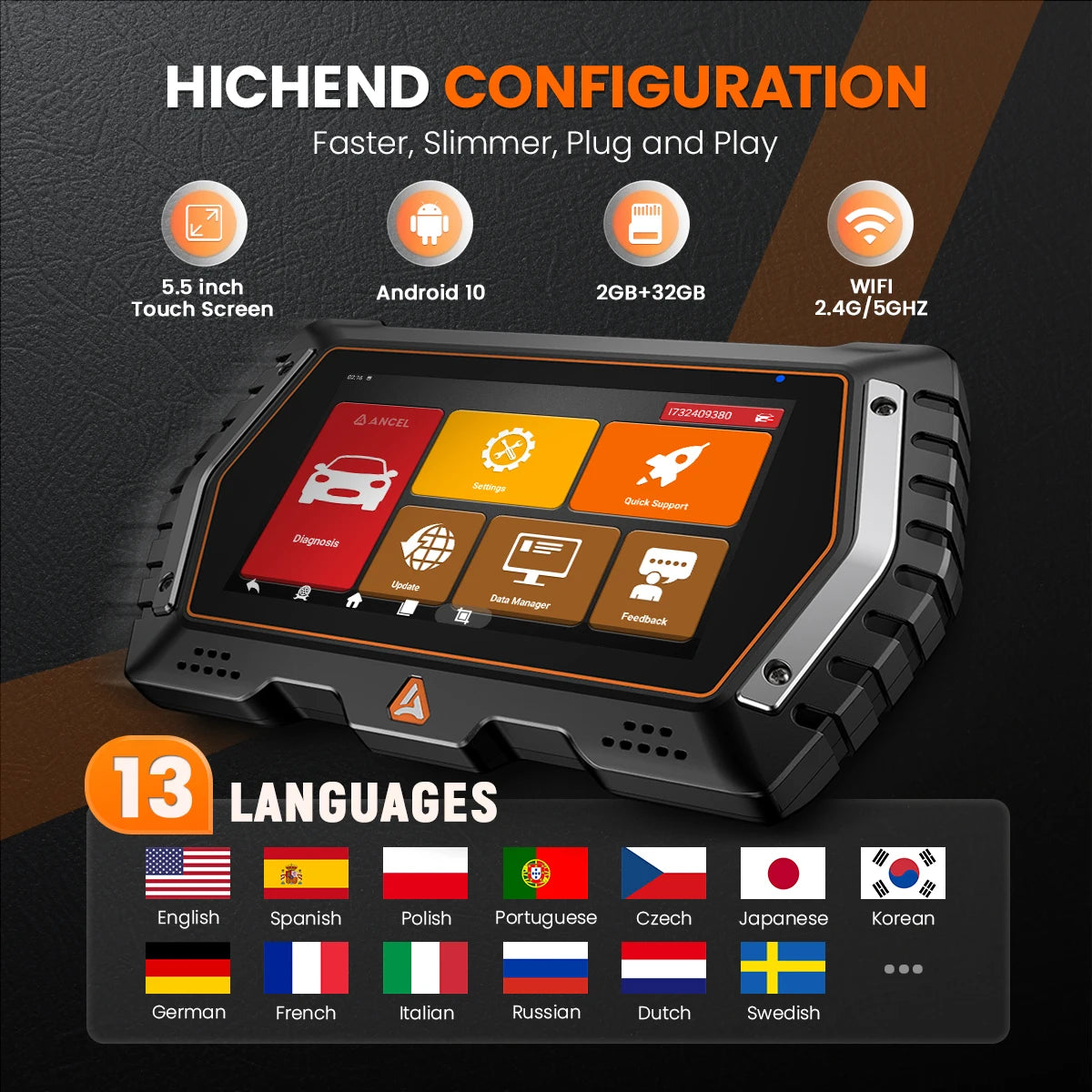

‌Multi-language support‌: English, German, Spanish, French, Polish, Italian, Portuguese, Russian, Czech, Dutch, Japanese, Swedish, Korean, multinational technicians can also operate it easily!

Other functions

Auto Vin Reading
Automatically VIN reading for comprehensive all available systems scan for quick diagnosis.

OnLine Feedback
For shop or garage, the Shop Manager will keep record of tested vehicles including vehicle information, DTCs and customer information, which is a great support for the management of daily workshop business.

4 In 1 Data View
Except for display in text, V3 Elite fit for BMW diagnostic scan tool also support display the live data in multiple graphs, including single graph, multi-graphs, and merged graphs.

Data Record & Playback
V3 Elite fit for BMW code scanner allows mechanic or users to generate history diagnostic report for further check or asking for help.

Data Sharing
After connected WiFi, V3 Elite fit for BMW code reader can share the diagnostic report for your customer or friends, in addition, you can print diagnostic report for further analysis.

To update the software

1.Ensure the tablet is connected to a power source and has a stable Internet connection.
2.Tap the Update application button from the Ancel APP homepage. The Update application screen displays.
3.On the Update screen, tap the all select button to select all available software version, then tap the update button to update all select software version.
4.When the updating process is completed, the software will be installed automatically. The previous version will be replaced.

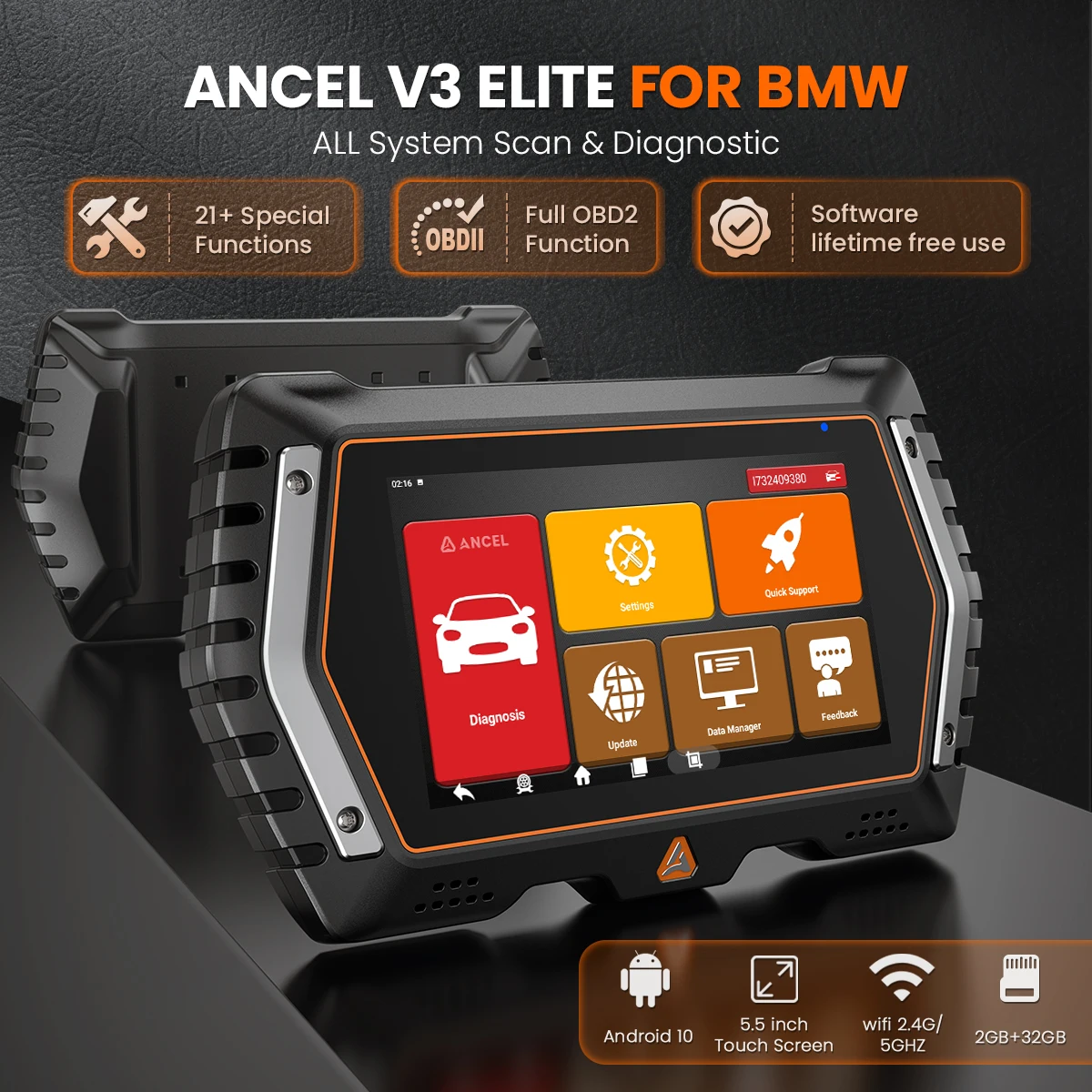

Specifications

‌Processor‌: A133 ARM Cortex-A53, Quad Core at 1.5 Ghz
‌GPU‌: IMG PowerVR GE8300
‌Operating System‌: Android 10
‌Memory‌: 2GB LPDDR4 RAM & 32GB EMMC ROM
‌Display‌: 5.5 inch IPS Multi-touch Capacitive Touch Screen with 1280*720 resolution
‌Input Voltage‌: 8V – 30 V
‌Power Consumption‌: Approx. 800 mA (Screen on with default brightness, Wi-Fi on) @3.7 V
‌Operating Temperature‌: -10 to 50 °C (14 to 122 °F)
‌Storage Temperature‌: -20 to 60 °C (-4 to 140 °F)
‌Operating Humidity‌: 5% to 95% non-condensing
‌Dimensions (W x H x D)‌: 201 mm (7.91 in) x 118 mm (4.65 in) x 34 mm (1.34 in)
‌Weight‌: NW: 370 g (0.82 lb)

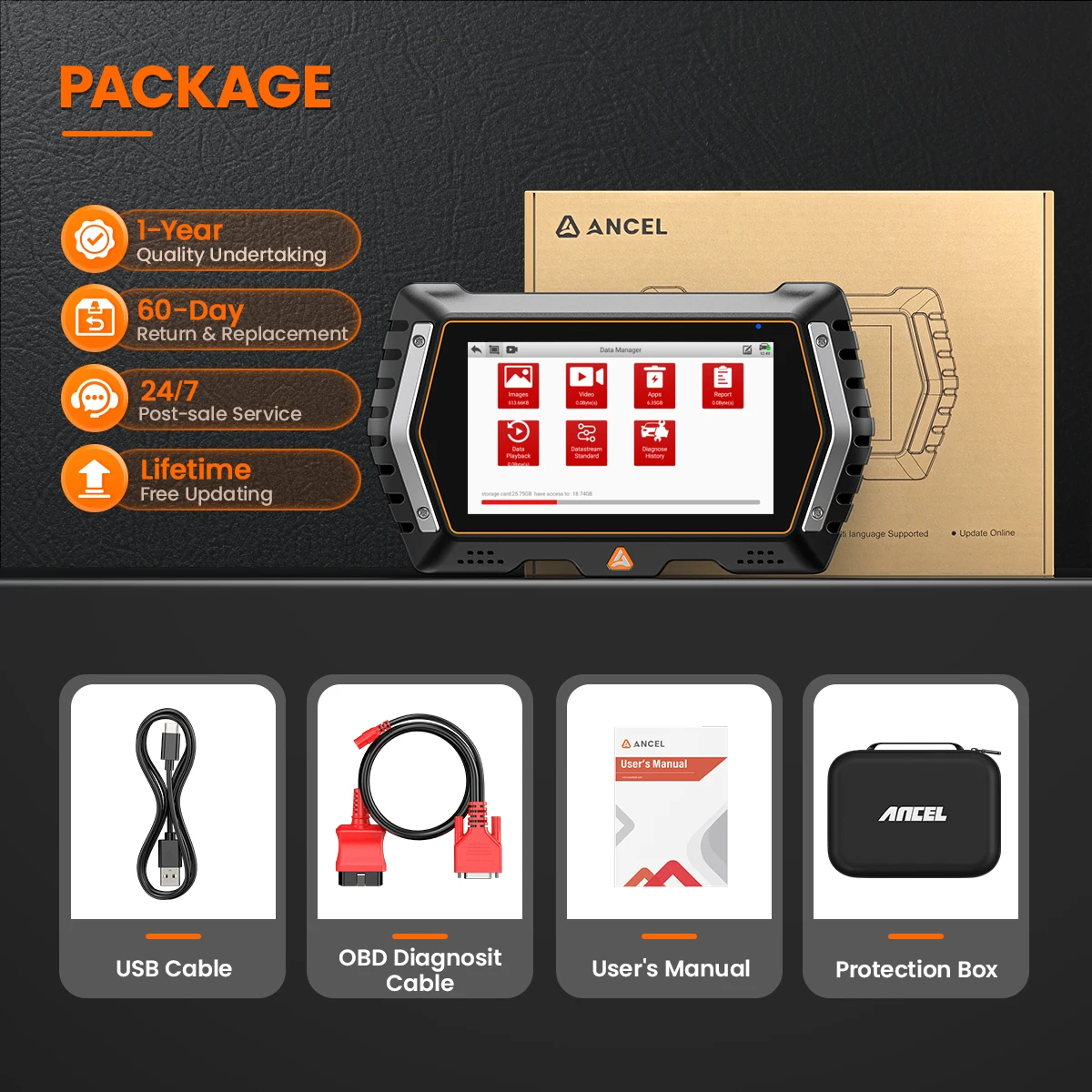

Packing List

1* V3 Elite for BMW/Mini/Rolls-Royce Scanner
1* DB15 Diagnostic Cable
1* Hard Carrying Case
1* TYPE C Charging Cable
1* User Manual
1* Activation Code
